Packaged Units

SKM Packaged Air Conditioners are designed and manufactured to meet the requirements of the Gulfs severe climatic conditions and are built specifically for outdoor installations, either on ground or roof level.

SKM Packaged Air Conditioners are ideal for warehouses, large halls, schools, mosques, or wherever the requirement is for a heavy duty unit incorporated with various solutions of compressors (hermetic scroll, hermetic reciprocating and semi-hermetic reciprocating) and refrigerants (R134a, R407C and R410A).

SKM Packaged Air Conditioners are available in wide capacity, ranging from 5 TR to 145 TR (50 Hz & 60 Hz) in various series like PACVD, PACVS, APMR and PACS. Unit operation is controlled by Microprocessor controllers and available with electronic expansion valves as well. These packaged units are designed and rated in accordance to international standards e.g. AHRI, ASHRAE.

SKM Packaged Air Conditioners are completely assembled, internally wired, charged with required refrigerant at factory, tested before dispatch and ready for installation. All that is required on site is connecting ducting and power supply. This greatly reduces installation work and costs. They are designed for ducted systems which will enable them to be installed on roof tops or on the ground.

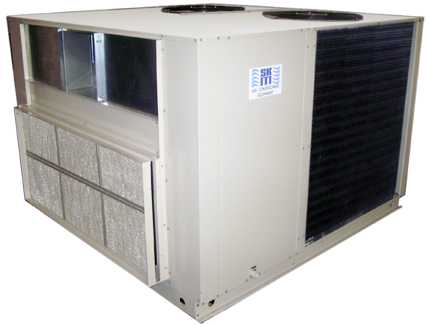

PAC-L Series (50Hz) : R22

New SKM PAC-L Series Packaged Air Conditioners are designed and manufactured to meet the requirements of Gulf's severe climatic conditions and are built specifically for ducted systems which will enable them to be installed easily on roof tops or on the ground.

The PAC-L series Packaged Air Conditioners are compact, quiet, most efficient and self contained units are ideal for commercial and top end residential applications.

SKM PAC-L Series are available in 16 different sizes from 4 to 27.5 TR (14 to 97 kW) in 50 Hz at nominal AHRI conditions. PAC-L units are designed, rated and manufactured in accordance with AHRI 210/240 and 340/360 standards.

The PAC-L series units from SKM are completely assembled, leak tested, vacuumed, internally wired and fully charged with R22 refrigerant at factory. Each unit is fully factory tested before dispatch and is ready for installation. All that is required on the site is to connect ducts, drain lines, main power supply and fi eld wiring to the thermostat. This greatly reduces the installation works and cost.

SKM PAC-L series packaged air conditioners are designed to operate in a wide ambient temperature range between 50°F (10°C) to 125.6°F (52°C). Two independent refrigeration circuits are provide where two compressors are used.

The PAC-L series are tested and operated satisfactorily at 125.6°F (52°C) ambient temp. with more than 2 hours continously running without tripping or over heating.


Download Catalogue (4.95 Mb)

PAC-L Series (60Hz) : R22

New SKM PAC-L Series Packaged Air Conditioners are designed and manufactured to meet the requirements of Gulf's severe climatic conditions and are built specifically for ducted systems which will enable them to be installed easily on roof tops or on the ground.

The PAC-L series Packaged Air Conditioners are compact, quiet, most efficient and self contained units are ideal for commercial and top end residential applications.

SKM PAC-L Series are available in 12 different sizes from 5.0 to 30 TR (18 to 105 kW) in 60 Hz at nominal AHRI conditions. PAC-L units are designed, rated and manufactured in accordance with AHRI 210/240 and 340/360 standards.

The PAC-L series units from SKM are completely assembled, leak tested, vacuumed, internally wired and fully charged with R22 refrigerant at factory. Each unit is fully factory tested before dispatch and is ready for installation. All that is required on the site is to connect ducts, drain lines, main power supply and fi eld wiring to the thermostat. This greatly reduces the installation works and cost.

SKM PAC-L series packaged air conditioners are designed to operate in a wide ambient temperature range between 50°F (10°C) to 125°F (52°C).

APMR Series (50Hz) : R410A

SKM APMR New Packaged Air Conditioners Series are designed and manufactured to meet the requirements of Gulf's severe climatic conditions and are built specifically for ducted systems which will enable them to be installed easily on roof tops or on the ground.

The APMR series Packaged Air Conditioners are compact, quiet, most efficient and self contained units are ideal for commercial and top end residential applications.

SKM APMR Series are available in 15 different sizes from 5 to 30 TR (16 to 101 kW) in 50 Hz at nominal AHRI conditions. APMR units are designed, rated and manufactured in accordance with AHRI 210/240 and 340/360 standards.

The APMR series units from SKM are completely assembled, leak tested, vacuumed, internally wired and fully charged with R410A refrigerant at factory. Each unit is fully factory tested before dispatch and is ready for installation. All that is required on the site is to connect ducts, drain lines, main power supply and field wiring to the thermostat. This greatly reduces the installation work and cost.

SKM APMR series packaged air conditioners are designed to operate in a wide ambient temperature range between 50°F (10°C) to 120°F (48.9°C). Two independent refrigeration circuits are provided where two compressors are used.

Latest Bulletin No.: 075/2016

Download Catalogue (7.11 Mb)

APMR Series (60Hz) : R410A

New SKM APMR Series Packaged Air Conditioners are designed and manufactured to meet the requirements of Gulf's severe climatic conditions and are built specifically for ducted systems which will enable them to be installed easily on roof tops or on the ground.

The APMR series Packaged Air Conditioners are compact, quiet, most efficient and self contained units are ideal for commercial and top end residential applications.

SKM APMR Series are available in 13 different sizes from 5.0 to 32 TR (19 to 114 kW) in 60 Hz at nominal AHRI conditions. APMR units are designed, rated and manufactured in accordance with AHRI 210/240 and 340/360 standards.

The APMR series units from SKM are completely assembled, leak tested, vacuumed, internally wired and fully charged with R410A refrigerant at factory. Each unit is fully factory tested before dispatch and is ready for installation. All that is required on the site is to connect ducts, drain lines, main power supply and field wiring to the thermostat. This greatly reduces the installation work and cost.

SKM APMR series packaged air conditioners are designed to operate in a wide ambient temperature range between 50°F (10°C) to 120°F (48.9°C). Two independent refrigeration circuits are provided where two compressors are used.

Latest Bulletin No.: 76/2016
